Remembering memory

In high school I recall wondering how anyone would possibly be able to fully utilize 64Kb of RAM.

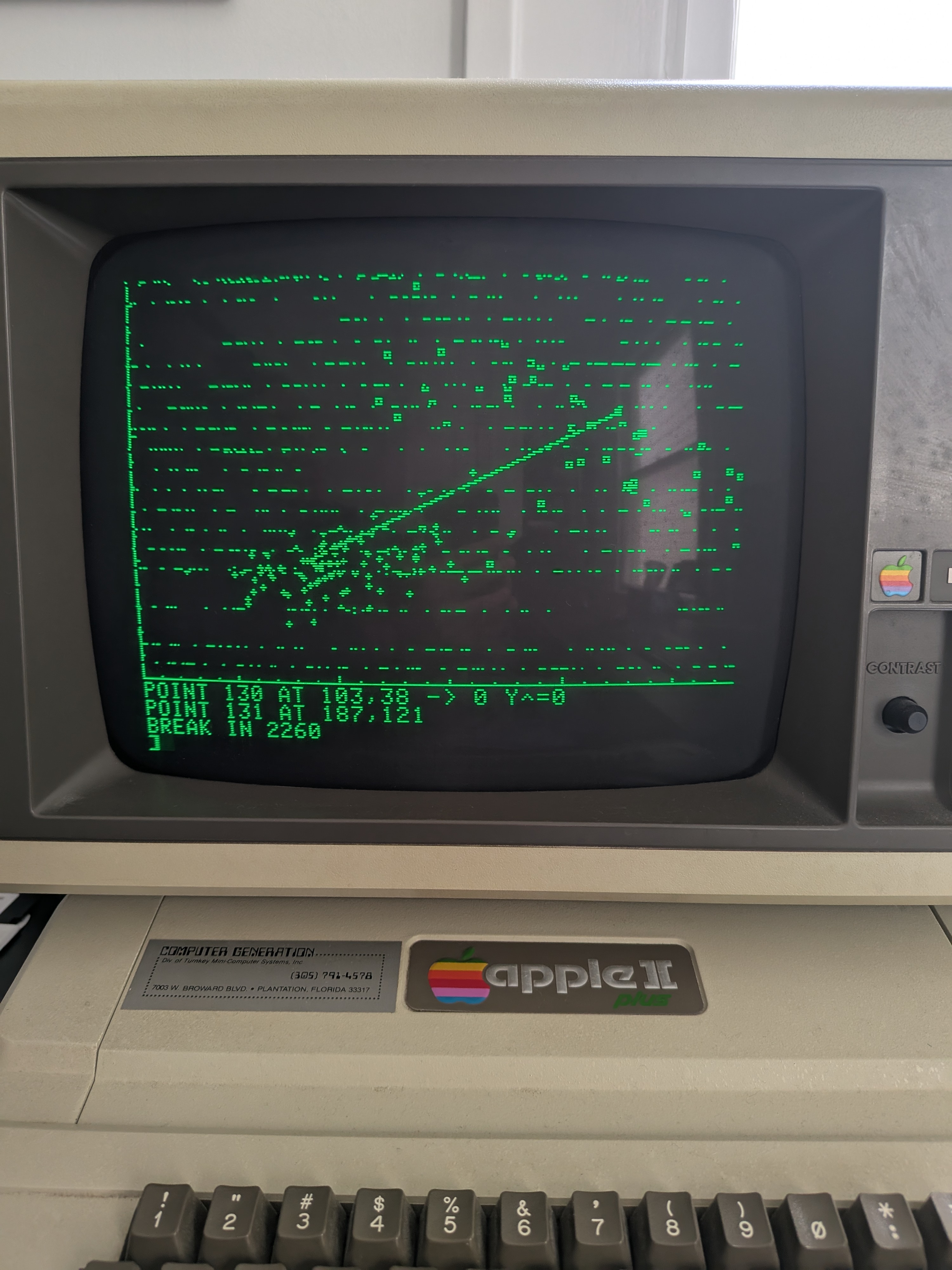

Fast forward to today and my K-means program produced a screen like this:

Fun. Unlike the RAM issues I had before refurbishing the machine, this issue was programmatic. In short, when increasing the number of samples in each class to something “large,” like 50, the data arrays would grow into graphics memory. What? Yes, on the Apple ][+ all the memory is contiguous.

Memory map

Here’s a “RAM Organization and Usage” map that I pulled out of the Apple ][ Reference Manual. The Apple ][+ came with 48Kb of RAM ($00-$BF) on the motherboard but I have the memory expansion card, also called a language card, with an extra 16Kb ($C0-$FF). Using the extra memory was complicated as the 16Kb were squeezed into a 12k addres space ($D000-$FFFF) by using bank switching. (I explored storing data on the language card, which would be relatively easy for integers but a nightmare for floats, but it hasn’t come to that yet.)

Page	Hex	Usage
0	$00	System programs
1	$01	System stack
2	$02	GETLN input buffer
3	$03	Monitor vector locations
4-7	$04-$07	Text and lo-res graphics (primary page)
8-11	$08-$0B	Text and lo-res graphics (secondary page)
12-31	$0C-$1F	Free RAM
32-63	$20-$3F	Hi-res graphics (HGR, primary page)
64-95	$40-$5F	Hi-res graphics (HGR2, secondary page)
96-191	$60-$BF	Free RAM
192-199	$C0-$C7	I/O
200-207	$C8-$CF	I/O ROM
208-255	$D0-$FF	ROM or 16Kb language card

In “normal” operation, a BASIC program would reside starting at $0800, right after the primary text page, and on top of the secondary text page. From the end of the BASIC program, variables and arrays would grow up. Strings, for some reasons, would reside at $BFFF and grow down. If you don’t use graphics, this gives you almost 46Kb of space. If you want to use the primary page of hi-res graphics, known as HGR, then you get only a paltry 6Kb of space for your program and variables. (This is surely an artifact of a 1977 design decision to enble HGR on machines that only shipped with 16Kb, making $3FFF the highest address in RAM.)

What you’re seeing in the image above are my data arrays growing into HGR. When the arrays are declared, everything is zero, so there’s no problem. As soon as I start writing values to the array, however, those show up on the screen. Similary, plotting graphics on the screen has the effect of writing values into the arrays. Obviously, this is a problem.

Moving things around

A very astute observer of my last post might have noticed that I added a LOMEM statement to the very beginning of my program. This statement simply sets the bottom address for variables and arrays. Setting it to 16384, which is $4000, means my data arrays and other variables will now build from the top of HGR. The entire 6Kb space from $0800 to $2000 can now be used for the BASIC program. Huge! Also, $4000-$BFFF, or 32Kb, can be used for variables, arrays and strings. This is more than enough space… for now.

Still not enough

Now that I’ve got K-means working reliably with a decent number of samples in each class, I decided to add some code to execute multiple runs so I could start comparing the results from random initializations. Here’s what I did:

10 LOMEM: 16384 : REM top of HGR
20  HOME : VTAB 21
30  GOSUB 2420 : REM Run multiple k-means
40  END

... code same as before ...

1970 PRINT "K-MEANS CONVERGED!"
1980 REM  -- clear graphics and redraw with decision boundaries --
1990 GOSUB 900: REM draw axes
2000 GOSUB 2040: REM draw samples
2010 GOSUB 2110: REM draw decision boundaries
2020 RETURN

... code same as before ...

2420 REM == Run multiple k-means ==
2430 NI = 5: REM # of iterations
2440 DIM IT(NI,1): REM store results
2450 GOSUB 900 : REM draw axes
2460 GOSUB 50 : REM generate data
2470 FOR L = 1 TO NI
2480   GOSUB 900
2490   GOSUB 2040: REM draw samples
2500   GOSUB 1320: REM run k-means
2510   IT(L,0) = A
2520   IT(L,1) = KI%
2530   PRINT "RUN "; L; ": ACC = "; A; "% IN "; KI%; " ITERS"
2540 NEXT L
2550 TEXT
2560 PRINT: PRINT "SUMMARY OF K-MEANS RUNS:"
2570 FOR L = 1 TO NI
2580  PRINT "RUN "; L; ": ACC = "; IT(L,0); "% IN "; IT(L,1); " ITERS"
2590 NEXT L
2600 RETURN

More on the analysis later, but when I first put together this code, I would get errors after the first run. Turns out the last few lines of code were being erased. Was my BASIC code running into HGR? A quick Gemini prompt gave me PRINT PEEK(175) + 256 * PEEK(176) as the pointer to track the end of the BASIC program. HGR starts at $2000 (8192) and the pointer was giving me something over 8200.

So I cut code. I didn’t want to remove all of the REM statements, or even most of them, but I went through and trimmed them down. Additionally, the Irwin-Hall Distribution was deemed significantly slower than the Box-Muller transform, I decided to remove that code altogether. The final result was and end address of 8032, well under HGR.

Box-Muller vs Irwin-Hall redux

In Visual Studio Code I was able to quickly spin up a separate program to compare the speeds. A quick test on AppleWin showed their speeds to be almost identical. That being said, I’m sticking with Box-Muller because of its superior mathematical properties. (It generates exact, independent standard normal samples, whereas Irwin-Hall relies on the Central Limit Theorem to approximate a normal distribution. You could get away with generating fewer than 12 random normal variables in order to improve speed but performance at the tails will suffer.)

10 REM == Random Number Generation Speed Test ==

20 REM -- Box-Muller Transform vs Irwin-Hall Distribution --
30 REM -- Generate random normal variables --
40 REM -- Time measurement is not implemented...
50 REM -- ... use a stopwatch to compare --

60 REM -- On AppleWin Apple ][+ emulator with 1000 iterations...
70 REM -- Box-Muller takes about 3m4s seconds and
80 REM -- Irwin-Hall takes about 3m7s seconds --
90 REM -- This estimates that they are equally fast --
100 REM -- When changing the order of the subroutines...
110 REM -- Box-Muller takes about 3m1s seconds and
120 REM -- Irwin-Hall takes about 3m4s seconds --

130 PRINT "BOX-MULLER VS IRWIN-HALL SPEED TEST"
140 PRINT "RUN BOX-MULLER... BEEP AT END"
150 GOSUB 420: REM wait for keystroke
160 FOR I = 1 TO 1000
170   GOSUB 270: REM Box-Muller
180 NEXT
190 PRINT CHR$(7);
200 PRINT "RUN IRWIN-HALL... BEEP AT END"
210 GOSUB 420: REM wait for keystroke
220 FOR I = 1 TO 1000
230   GOSUB 350: REM Irwin-Hall
240 NEXT
250 PRINT CHR$(7);
260 END

270 REM == Box-Muller Transform ==
280 U1 = RND(1)
290 U2 = RND(1)
300 R = SQR(-2 * LOG(U1))
310 TH = 6.28318531 * U2: REM 2 * PI * U2
320 Z0 = R * COS(TH)
330 Z1 = R * SIN(TH)
340 RETURN
350 REM == Irwin-Hall Distribution ==
360 Z0 = -6:Z1 = -6
370 FOR Z = 1 TO 12
380   Z0 = Z0 + RND(1)
390   Z1 = Z1 + RND(1)
400 NEXT
410 RETURN

420 REM  == wait for keystroke ==
430 PRINT "TYPE ANY KEY TO CONTINUE..."
440 POKE 49168,0 : REM clear buffer
450 IF PEEK(49152) < 128 GOTO 450
460 POKE 49168,0
470 PRINT "KEY PRESSED, CONTINUING..."
480 RETURN

As a fun note, I tried changing the order of the two methods because I read that Applesoft BASIC implements lines of code as a linked list, so it takes longer to run lines of code that are further down.

What if I want more

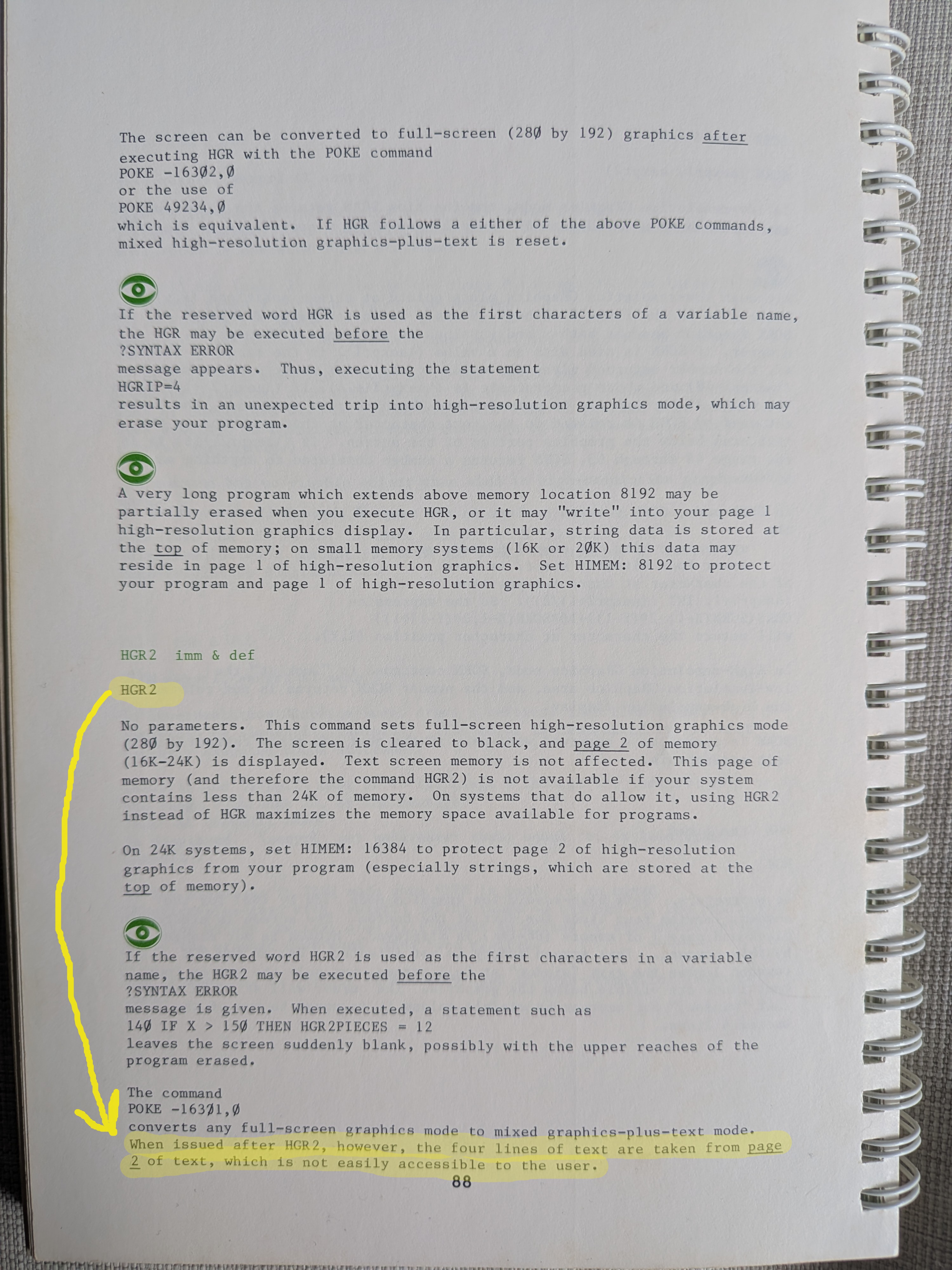

Since 8032 is a mere 160 bytes shy of HGR, I got to wondering if I could instead use HGR2 for graphics, which would give me another 8Kb of RAM for BASIC code, more than doubling the current amount of space. I spent way too much time trying to figure this out, but it won’t work if I insist on having 4 lines of text under the graphics, which comes standard with HGR. The reason is because, while there’s a software switch to enabled “mixed mode” in HGR2, the 4 lines of text actually come from the secondary page of text, which, unbelievably, starts at $0800, which is where BASIC code begins. There are also software switches to move the starting address of a BASIC program, which can be pushed to $0C00, however, BASIC PRINT statements will still write to the primary text page. To work around this you can write text characters, using POKE, directly to the secondary page of text memory, but this starts to become way more hassle than it’s worth.

An alternative approach, which I haven’t tried yet, involves “chaining” BASIC programs. In Applesoft BASIC you can run other program by simple calling RUN "PROGRAM NAME", however, all the variables are wiped. To get around that, you have to painstakingly write the variables you want to floppy and then the next program has to load them up. This obviously take a little time and coding but it’s theoretically not far from passing parameters to a modern programming method. I could write a program called GENERATE DATA that load a few parameters from a file on the floppy and then writes the data when it’s done. That being said, calling a second program from within a loop would create special problems and everything would need to be carefully chained. Anyway, this is probably why old Apple ][+ program would frequently cause the floppy to whirl.

I’ll worry about this another day…
